DYNACO

DYNACO M2/M3 ALL WEATHER

Resistant to heavy wind loads

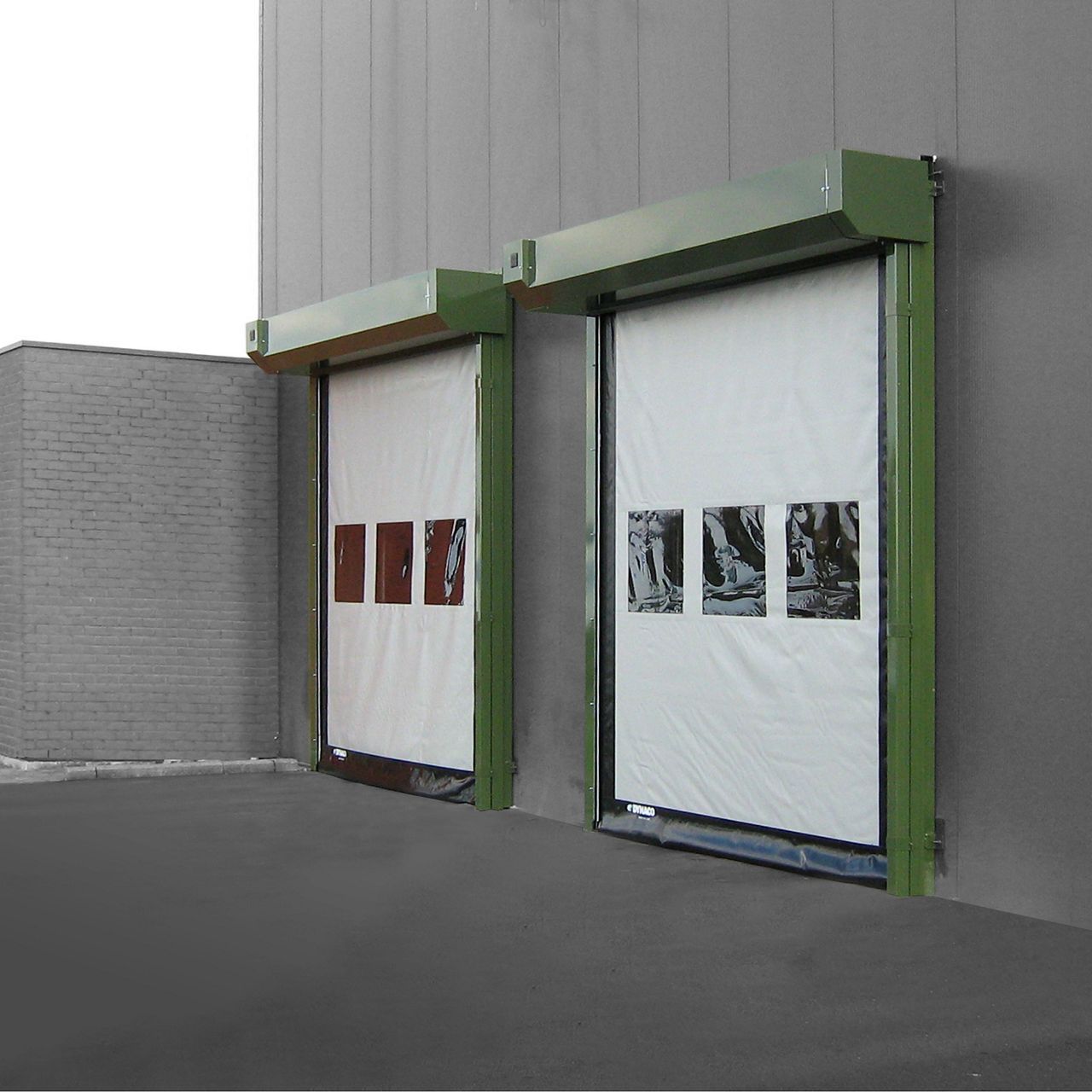

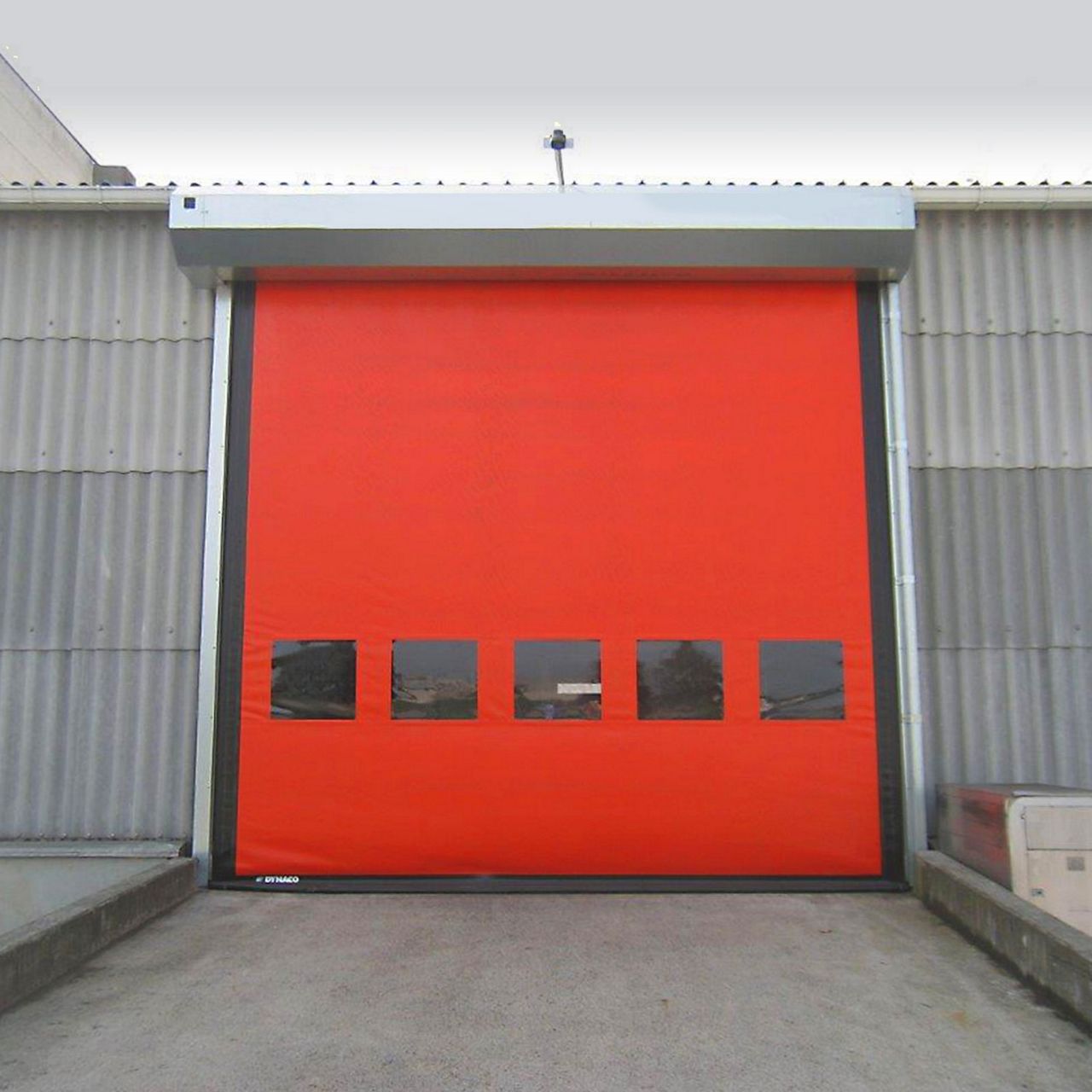

Install Dynaco M2/M3 ALL WEATHER high-speed roll-up doors if your building is often exposed to strong winds. Thanks to a superior and tight seal this medium sized high-speed door is wind resistant up to class 5 (M2) or class 4 (M3) of the European standard EN 12424.

The fast door cycle combined with push-pull drive technology ensures uninterrupted continuation of your production, transport or logistic activities, even in bad weather conditions.

Safe and reliable

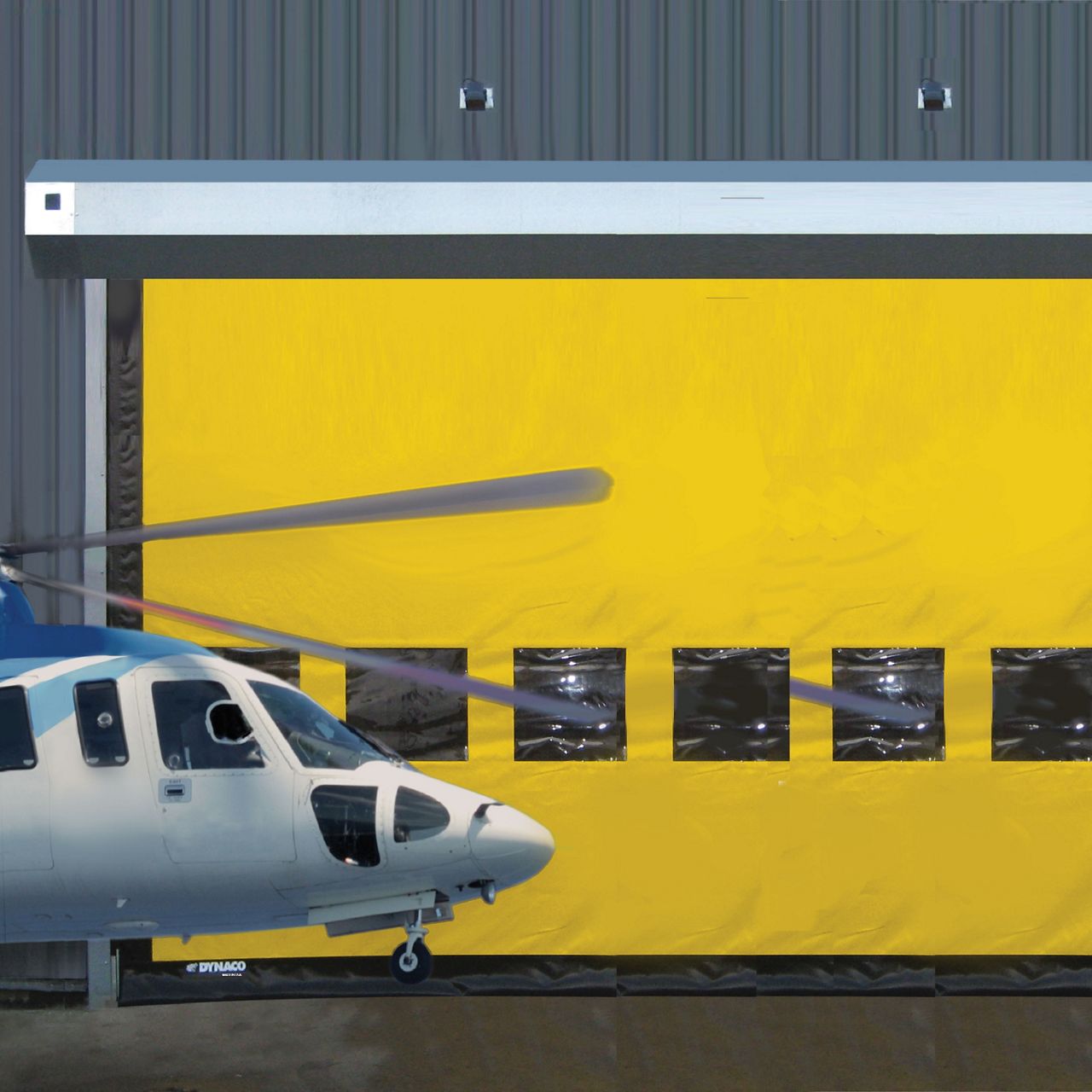

No ballast is used in order to close the Dynaco M2/M3 All Weather high-speed roll-up door. The flexible door curtain is pushed down by the motor. So even with a strong headwind the entrances to your building, warehouse or hangar remain fully operational.

With a curtain free of rigid elements, the Dynaco M2/M3 All Weather is safe for your staff and equipment. When accidentally dislodged, the door curtain reinserts itself into the side guides after an open and close cycle. This avoids production down-time.

Design your door
Contact us
An illustration of a door function.An illustration of a door function.

BIM

BIM objects are cloud-based, digital representations of our products in 2D or 3D
Go there
Energy savingEnergy saving

Energy saving

Uninterrupted workflowUninterrupted workflow

Uninterrupted workflow

Automatic self-reinsertionAutomatic self-reinsertion

Automatic self-reinsertion

Improved working environmentImproved working environment

Improved working environment
    • Wind resistant
      up to wind load class 5 (M2) or class 4 (M3) of the European standard EN 12424
    • Remains operational even under strong wind
      innovative push-pull drive technology
    • Suited for intensive use and fast traffic flows
      high opening and closing speed
    • Protects against bad weather

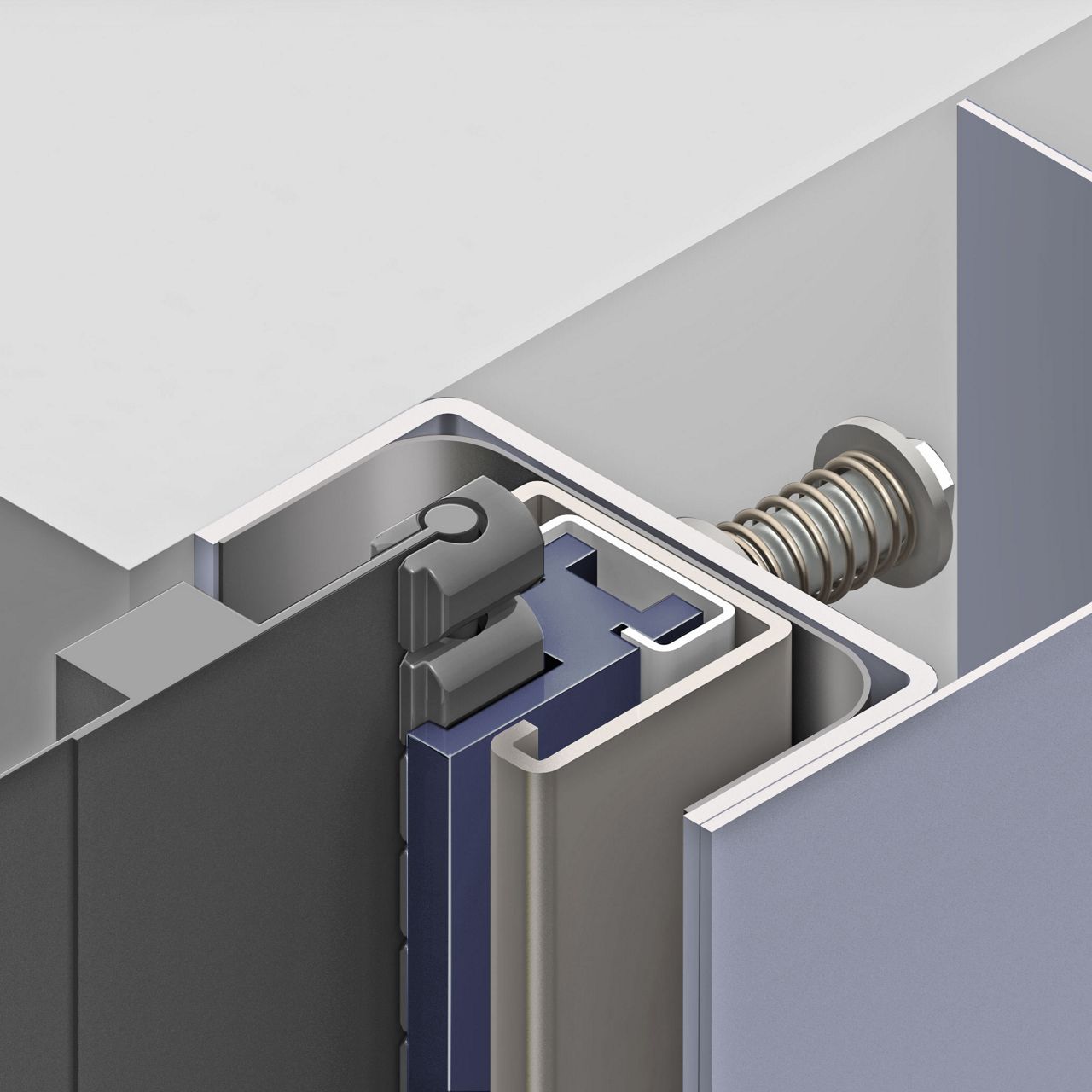

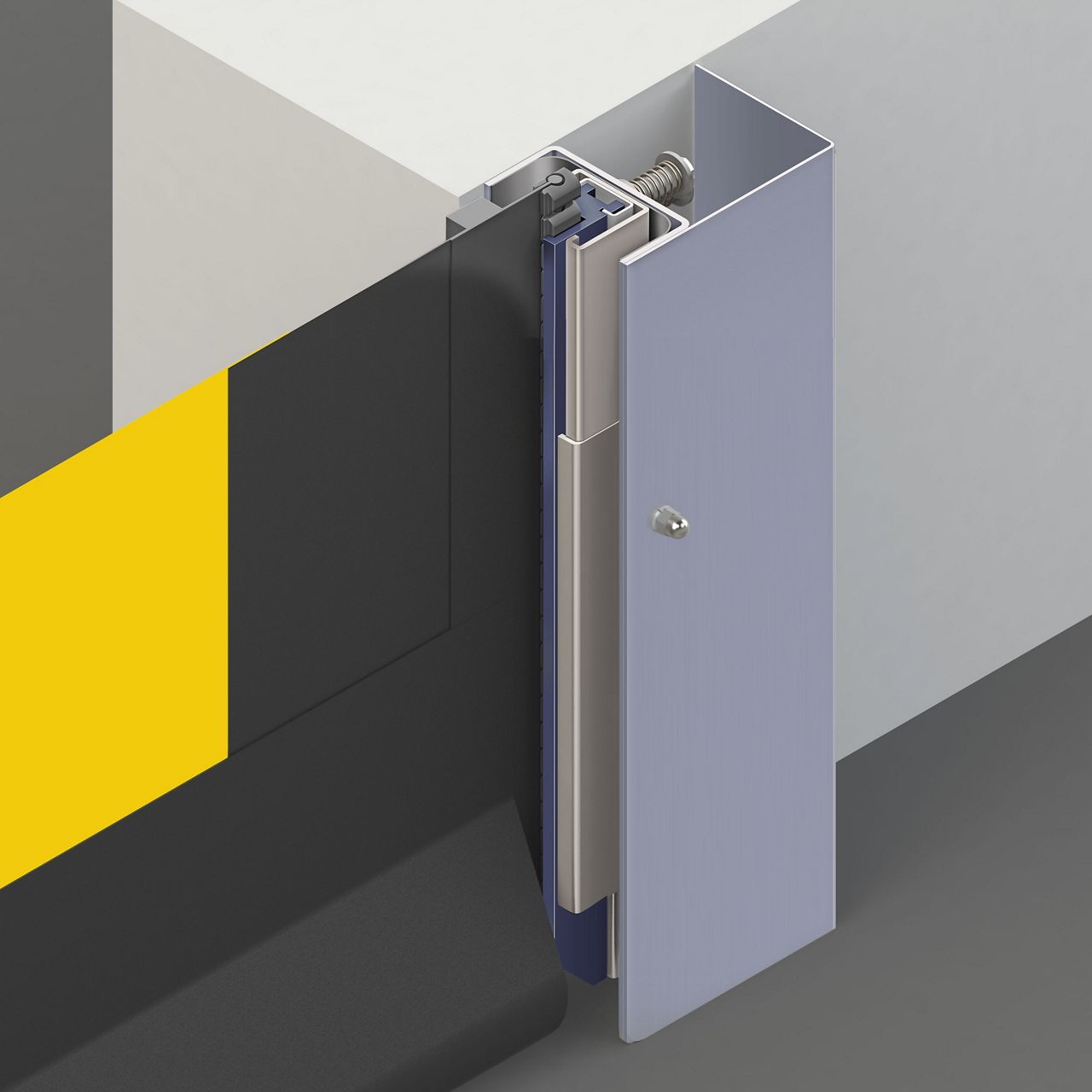

      superior seal around the full perimeter of the door
    • Safe for personnel and equipment
      flexible curtain without rigid elements avoids injuries and damages
    • Avoid production down-time
      self-reinserting door curtain
    • Conform to EN13241-1
    • Structure in stainless steel optional (M2 only)
  • Maximum height:H 5.500 mm
    Maximum width:W 5.500 mm (M2) - 8.000 mm (M3)
    Opening speed:up to 2,4 m/s (M2) - 1,4 m/s (M3)
    Closing speed:1,2 m/s (M2) - 0,6 m/s (M3)
    Usage:Outside
    Technology:Push-Pull
  • Commercial M2 M3 All weather(PDF, 1 MB)
    Technical datasheet M2 All weather (PDF, 408 KB)
    Technical datasheet M3 All weather(PDF, 385 KB)
