DYNACO

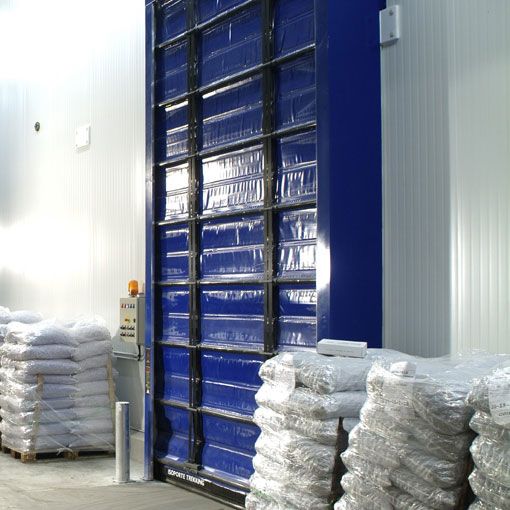

NERGECO C FREEZER 2

Anti-freeze features

The adapted motor can operate in extreme cold. It is equipped with a low emission de-icing system and deep-freeze-grade lubrication. The vertical side guides are provided with a self-controlled heating system to guarantee a smooth opening and closing of the curtain.

Double insulated triple-layer curtain

The C FREEZER 2 has a flexible triple-layer curtain with integrated air mattress (U = 1,97 W/m².K) to reduce conductive temperature loss through the curtain. The sides of the curtain have additional sealing flaps for an enhanced peripheral closing in the vertical side guides. Thanks to this design, no additional sliding door is required for overnight closing.

Contact us
Energy savingEnergy saving

Energy saving

Reduced maintenance costReduced maintenance cost

Reduced maintenance cost

Temperature controlTemperature control

Temperature control

Resisting extreme coldResisting extreme cold

Resisting extreme cold
    • Resists extreme cold
    • Environment control
    • Safety
    • Low maintenance and high durability
    • People and products
      The Nergeco “Intelligent Curtain” reduces the risk in injuries and damage. The free, flexible and soft bottom edge can be distorted both vertically and horizontally. At the slightest impact, it reopens the door.
    • Food grade curtain
      The curtain of the C FREEZER 2 is made of food grade material, adapted to the food industry.
    • Low maintenance and high durability
    • Multi-composite frame
      The unique and patented folding guide of the Trekking Fold-Up technology guarantees correct bar-to-bar folding of the curtain. This assures a better operation and a longer lifetime of the door.
    • Direct drive technology
      The direct drive motor with proven reliability provides long lasting performance. This technology avoids the use of chains and reduces maintenance. General wear is reduced as the door operates with only 5 moving parts (motor, gearbox, limit switch, winding shaft, rotating sleeve).
    • Uninterrupted production
      Even if the door is hit and a stiffener would bend, the folding door will continue to work without interrupting the production flow.
  • Maximum height:H 4.500 mm
    Maximum width:W 3.500 mm
    Opening speed:up to 0,8 m/s
    Closing speed:up to 0,8 m/s
    Usage:Inside
  • C Freezer 2(PDF, 131 KB)
