DYNACO

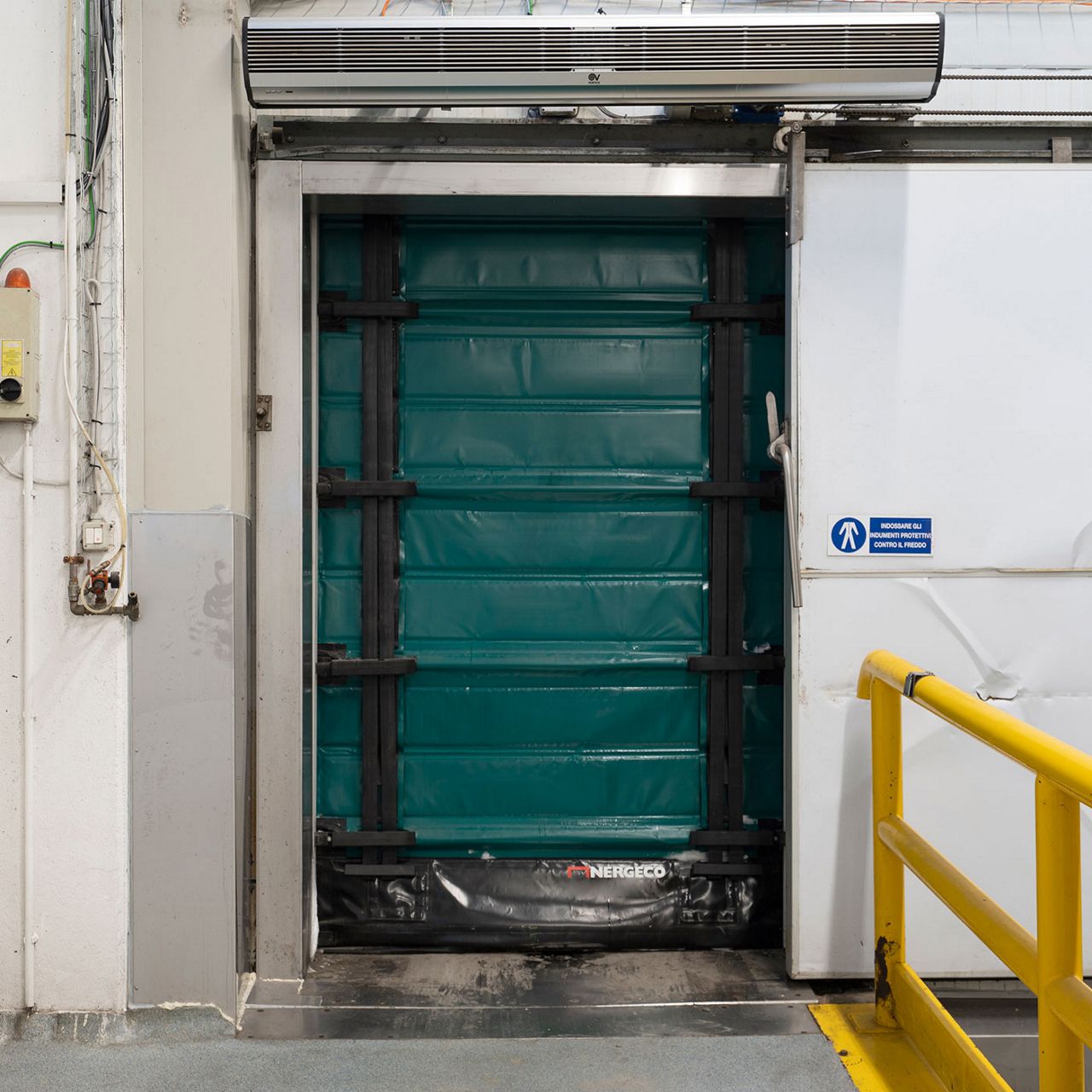

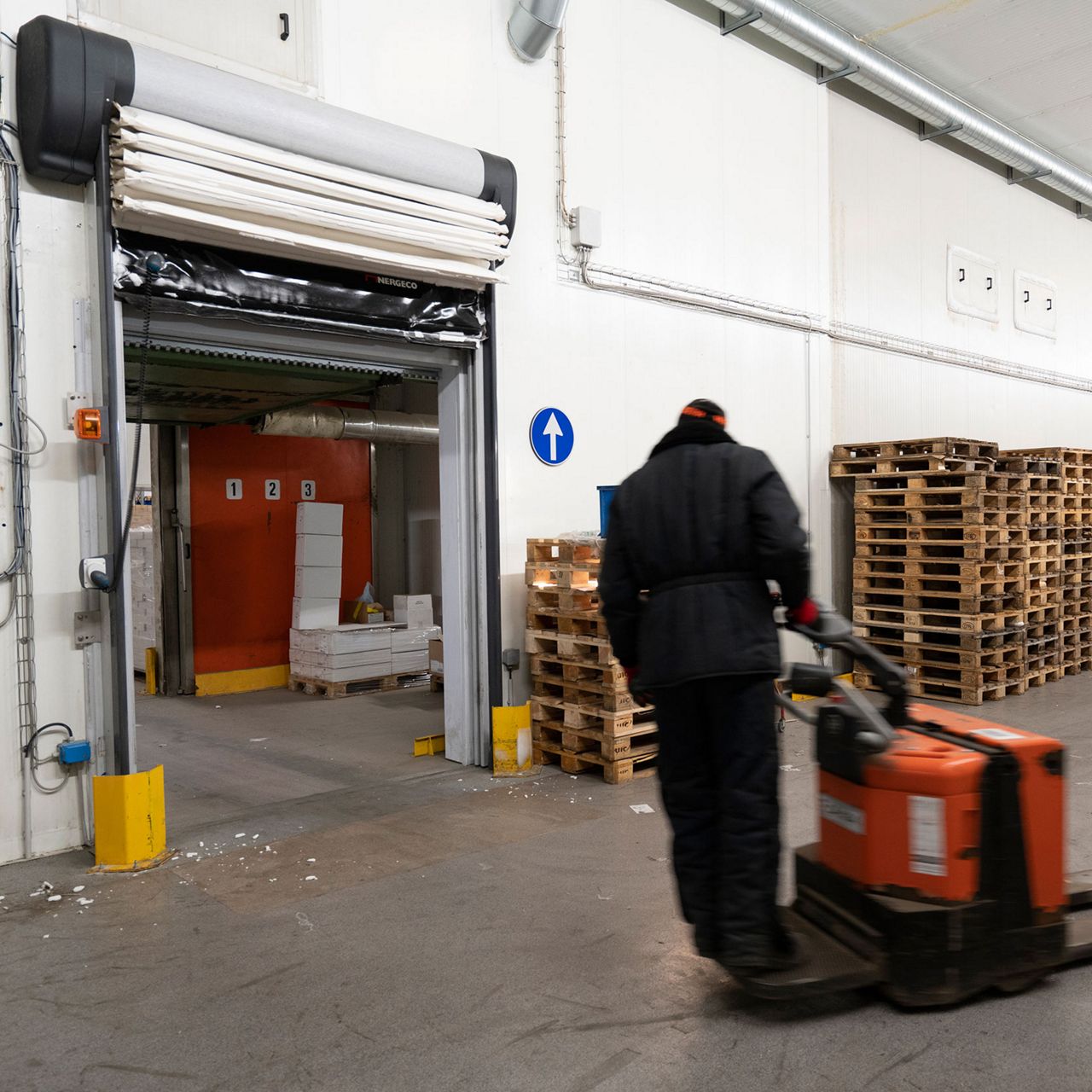

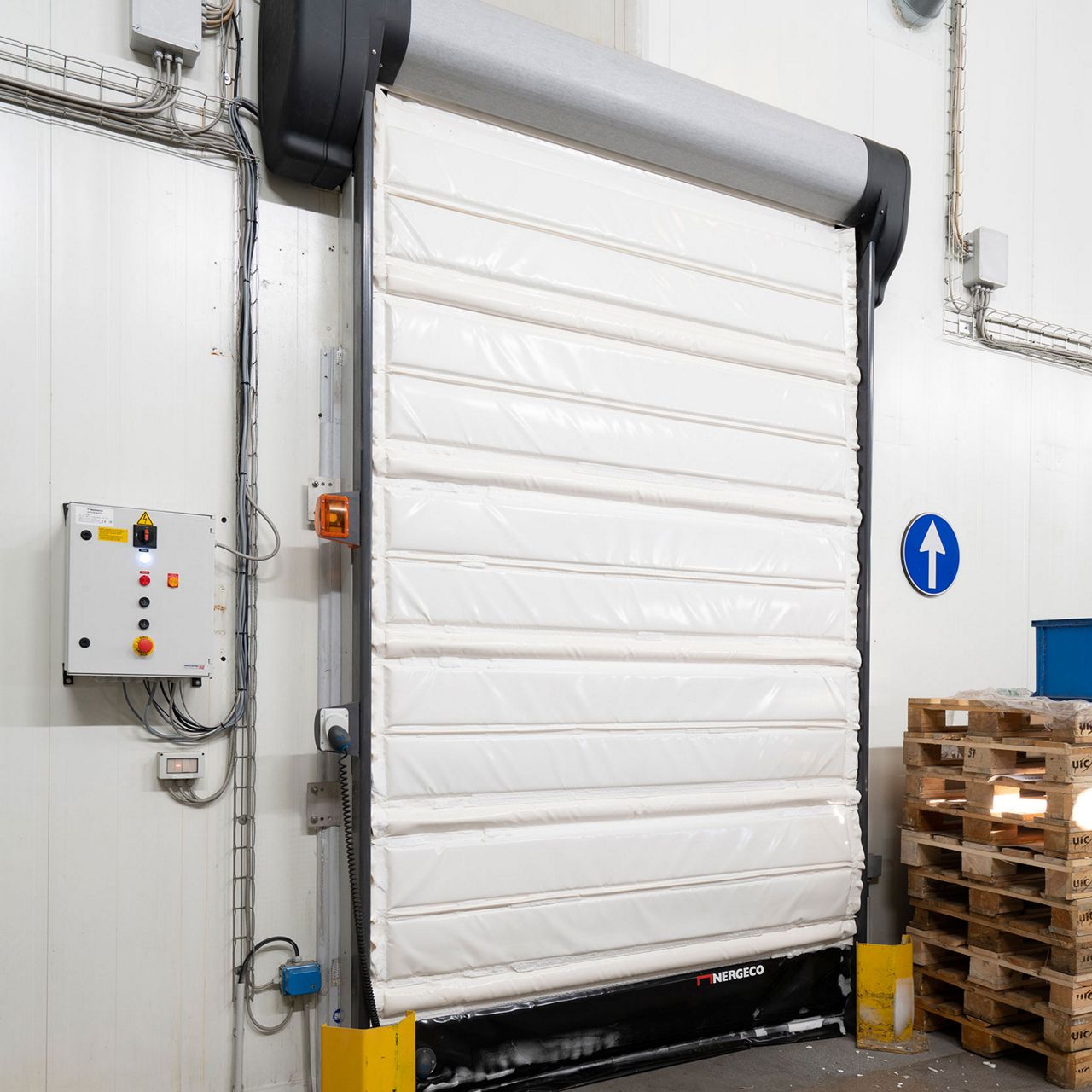

NERGECO C FREEZER 5

Multi-composite frame

The multi-composite frame is specifically suited for freezer applications as the composite material has a low conductivity for temperature. The frame is specially constructed to create a natural thermal barrier. The C FREEZER 5 is installed inside the freezer area.

Double insulated triple-layer curtain

The C FREEZER 5 has a flexible triple-layer curtain with integrated air mattress (U = 1,97 W/m².K) to reduce conductive temperature loss through the curtain. The sides of the curtain have additional sealing flaps for an enhanced peripheral closing on the vertical side guides. Thanks to this design, no additional sliding door is required for overnight closing.

Contact us
Resisting extreme coldResisting extreme cold

Resisting extreme cold

SafetySafety

Safety

Reduced maintenance costReduced maintenance cost

Reduced maintenance cost

Temperature controlTemperature control

Temperature control
    • Resist extreme cold
    • Environment control
    • Safety
    • Low maintenance and high durability
    • Food grade curtain
      The curtain of the C FREEZER 5 is made of food grade material, adapted to the food industry.
    • Low maintenance and high durability
    • Multi-composite frame
      The toughness of the side guides and their ability to absorb an impact without becoming permanently distorted avoid high repair costs. The corrosion- and paint free material guarantees durability, even in corrosive and aggressive environments.
    • Better operation and long lifetime
      The unique and patented folding guide of the Trekking Fold-Up technology guarantees correct bar-to-bar folding of the curtain. This assures a better operation and a longer lifetime of the door.
    • Direct drive technology
      The direct drive motor with proven reliability provides long lasting performance. This technology avoids the use of chains and reduces maintenance. General wear is reduced as the door operates with only 5 moving parts (motor, gearbox, limit switch, winding shaft, rotating sleeve).
  • Maximum height:H 4.500 mm
    Maximum width:W 4.000 mm
    Opening speed:up to 0,8 m/s
    Closing speed:up to 0,8 m/s
    Usage:Inside
  • C Freezer 5(PDF, 99 KB)
