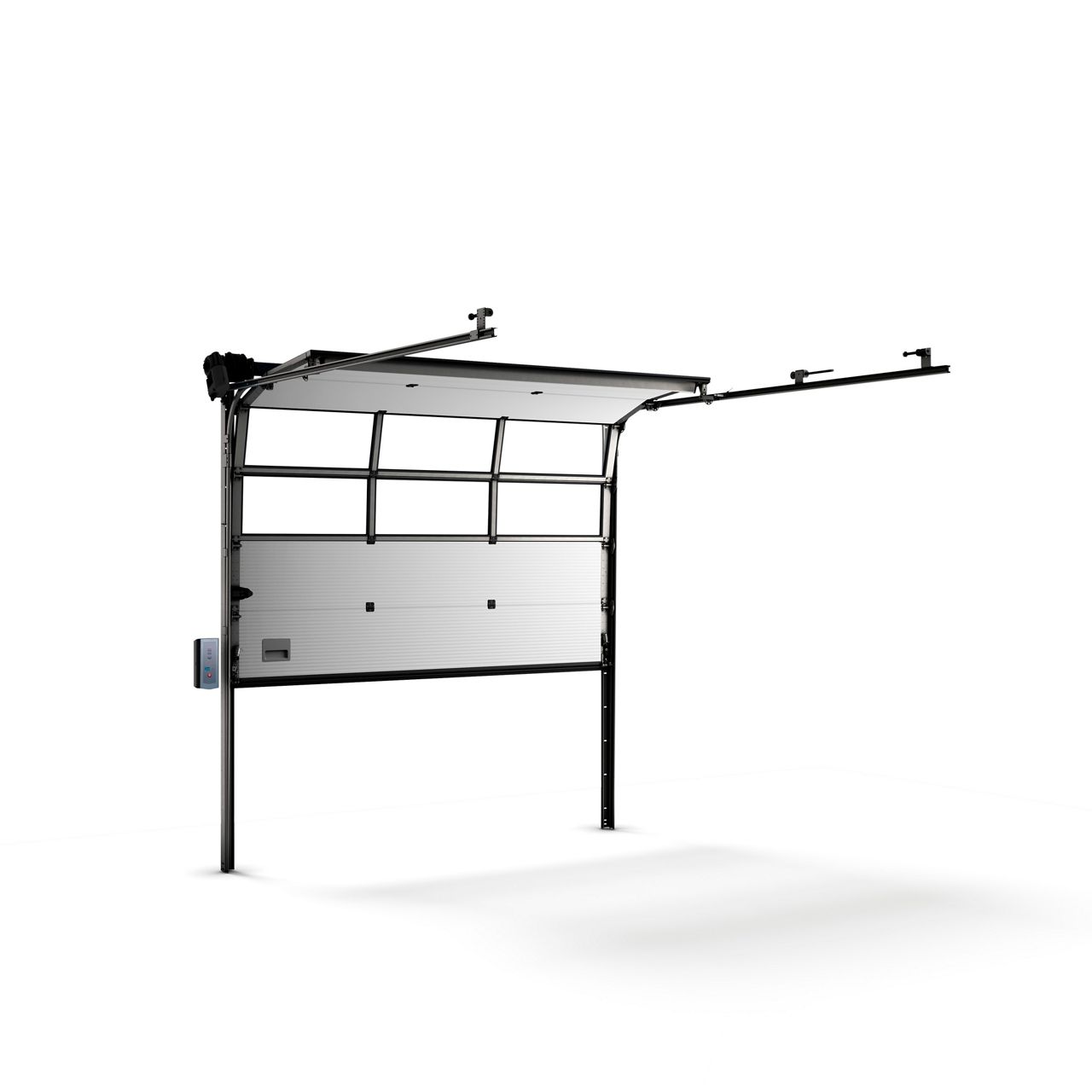

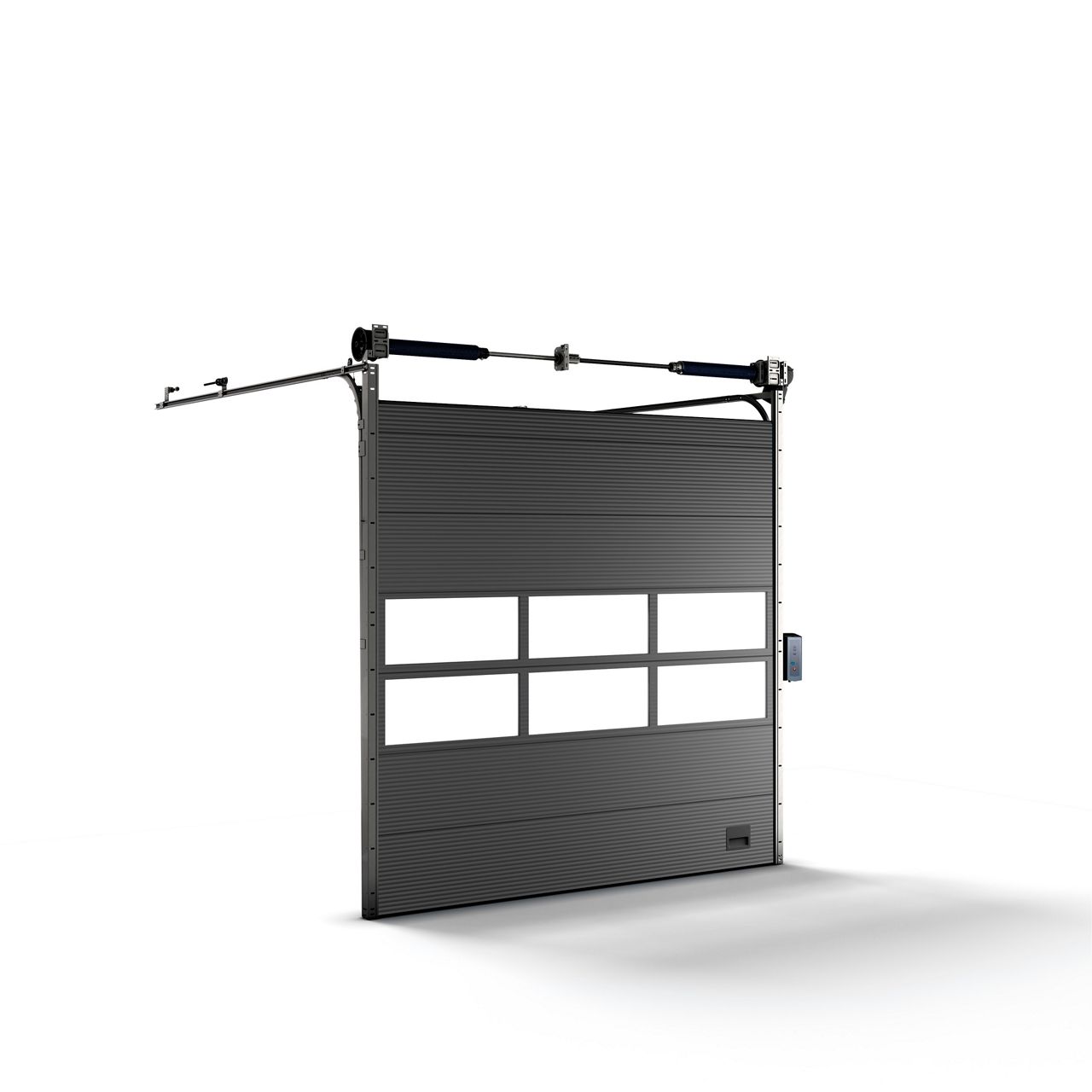

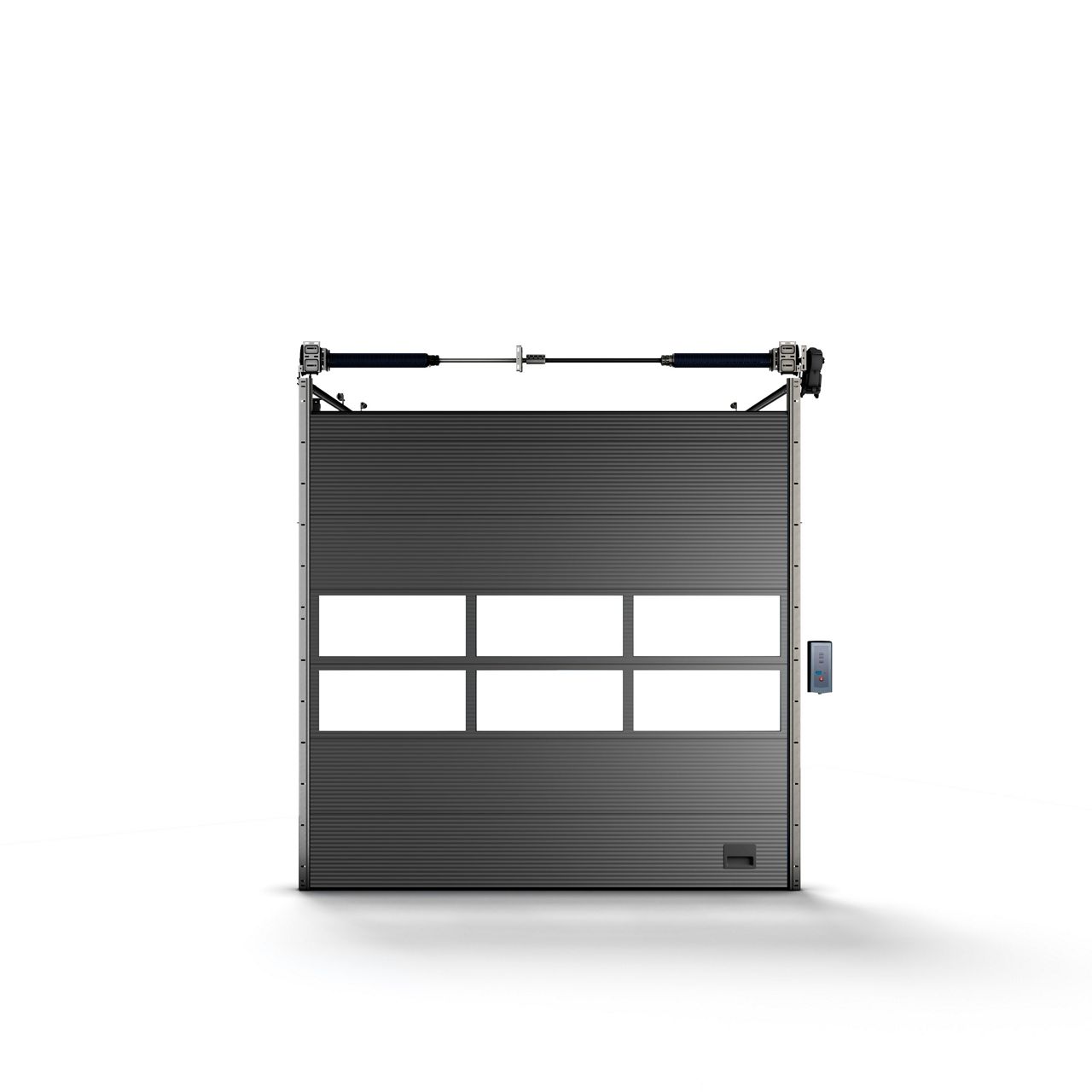

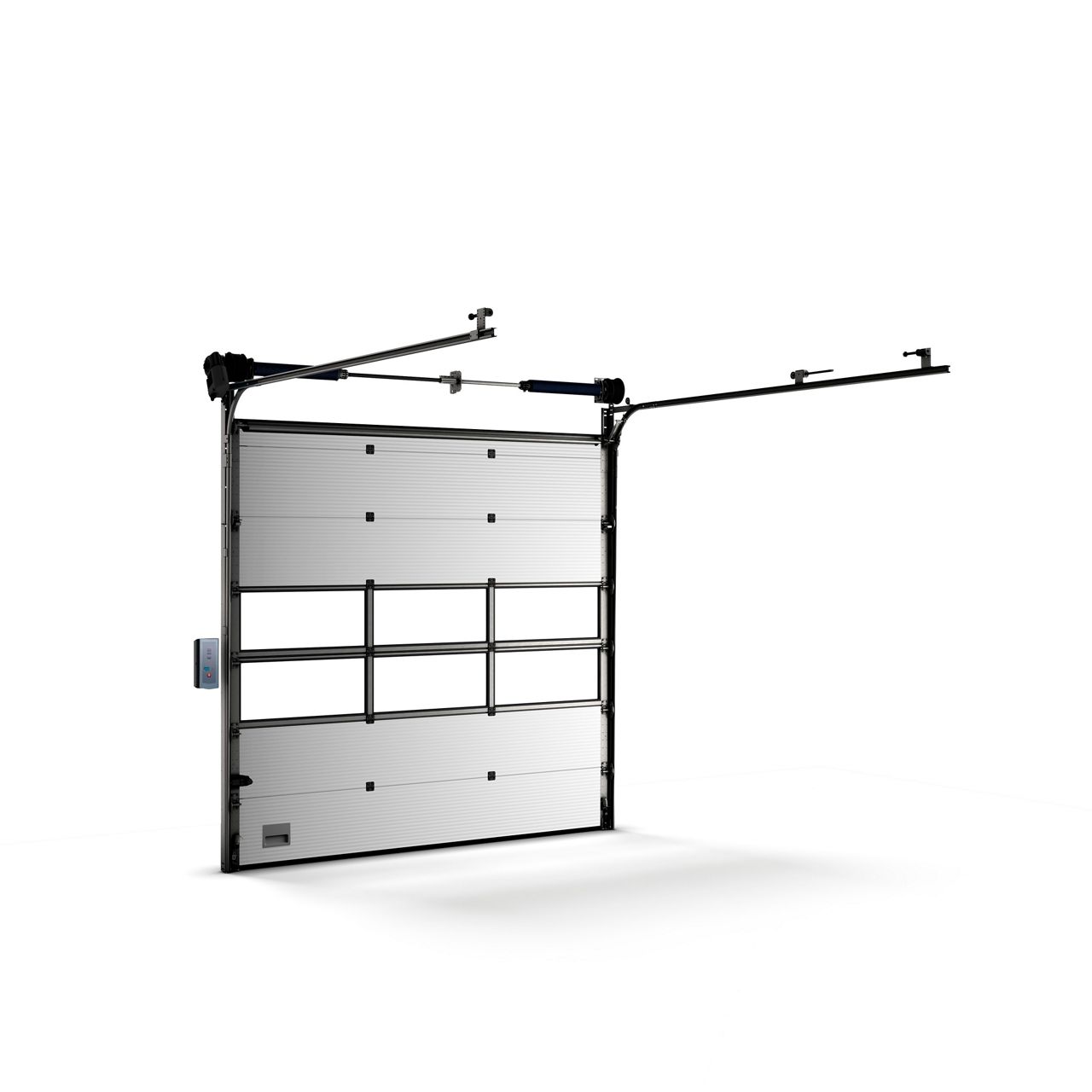

DYNACO I-14 S
High Speed Overhead Sectional Door
Fast overhead sectional door for unbeatable energy savings.
If your business is based on the efficient flow of goods, vehicles and people in an out of your building, the rapid DYNACO I-14 S is ideal. And with a speed of 1 meter per second, it is 4x faster than a standard overhead sectional door.
Four times faster than average
The rapid DYNACO I-14 S minimises heat loss, limits drafts and helps your business save energy – even if you have many door openings per day.
For businesses where speed is crucial
The perfect solution for distribution centers, logistics, or companies with a lot of traffic in and out, the powerful DYNACO I-14 S helps optimise the flow of goods and people.

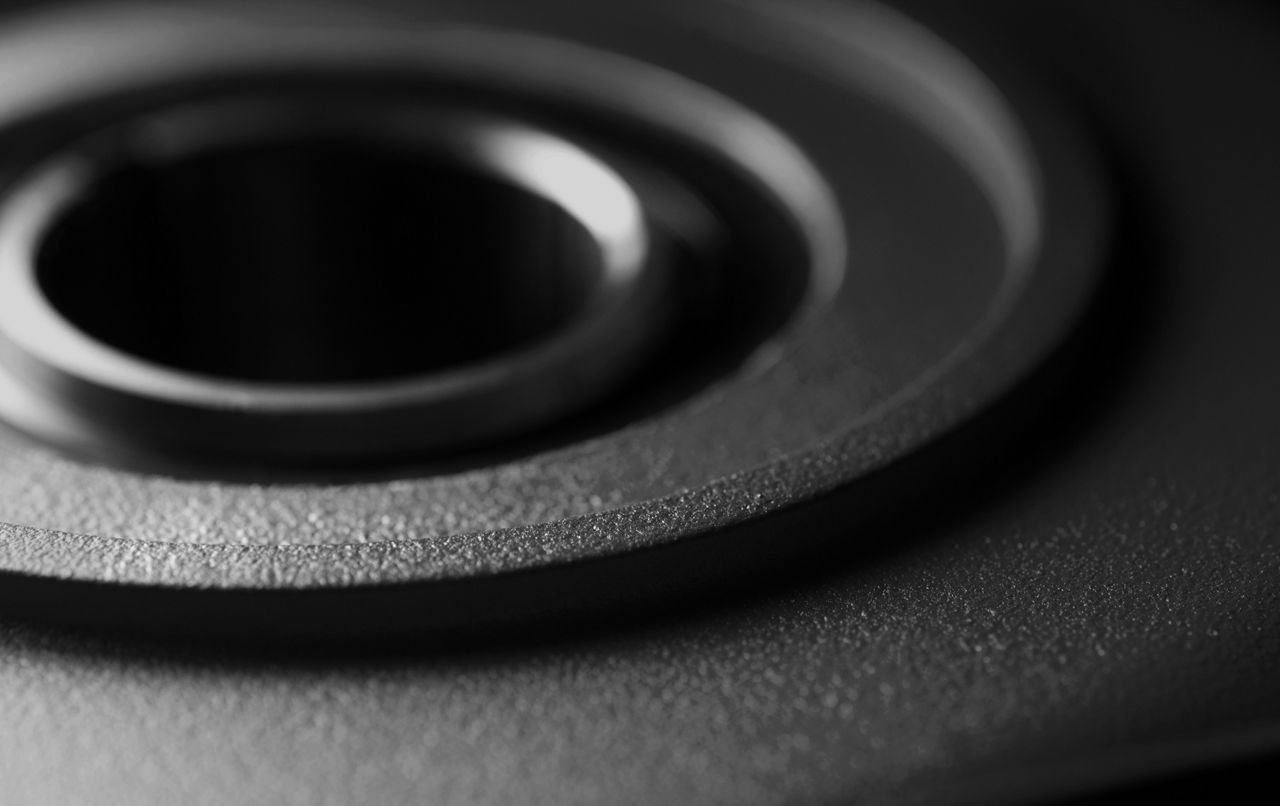

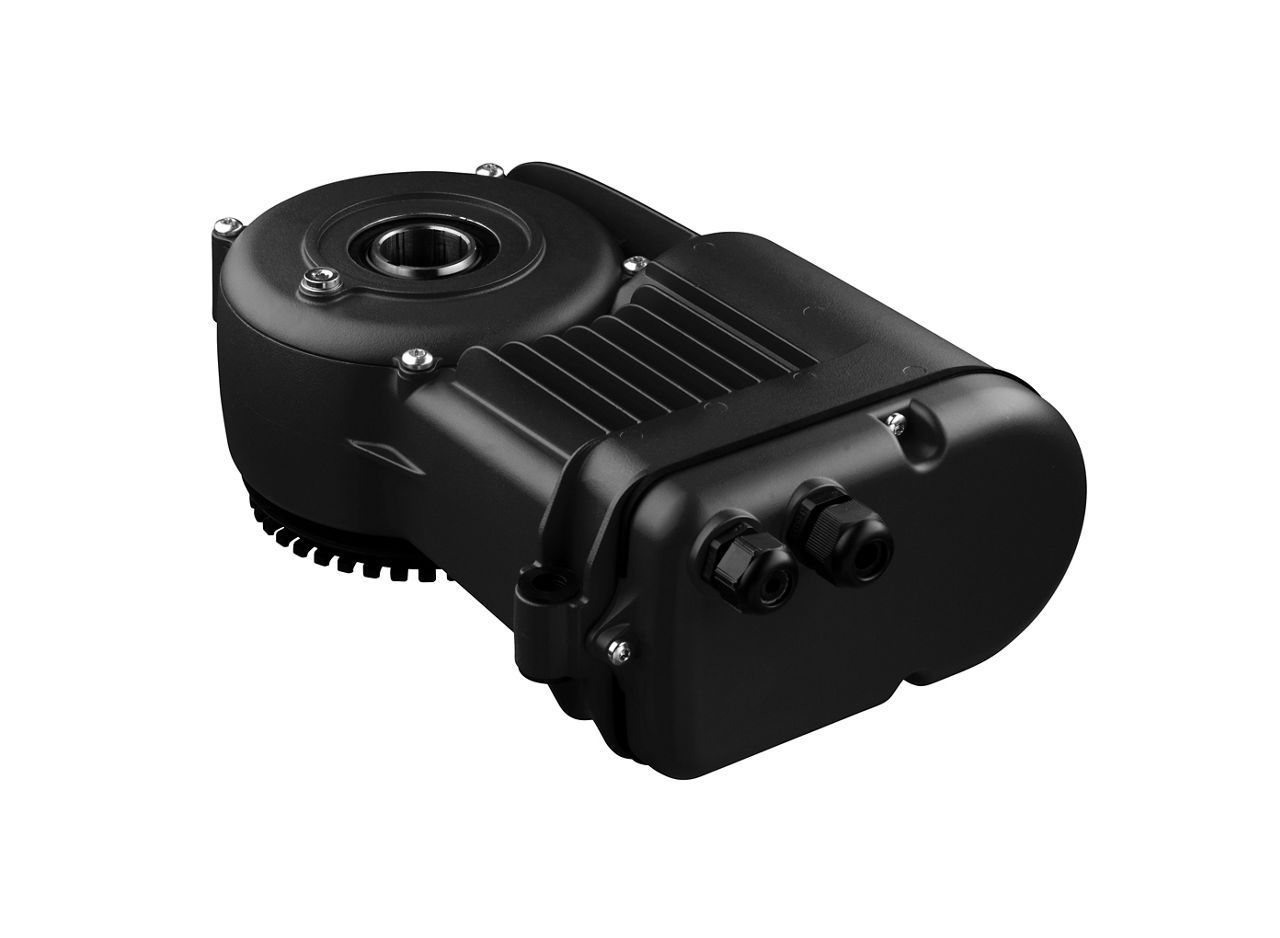

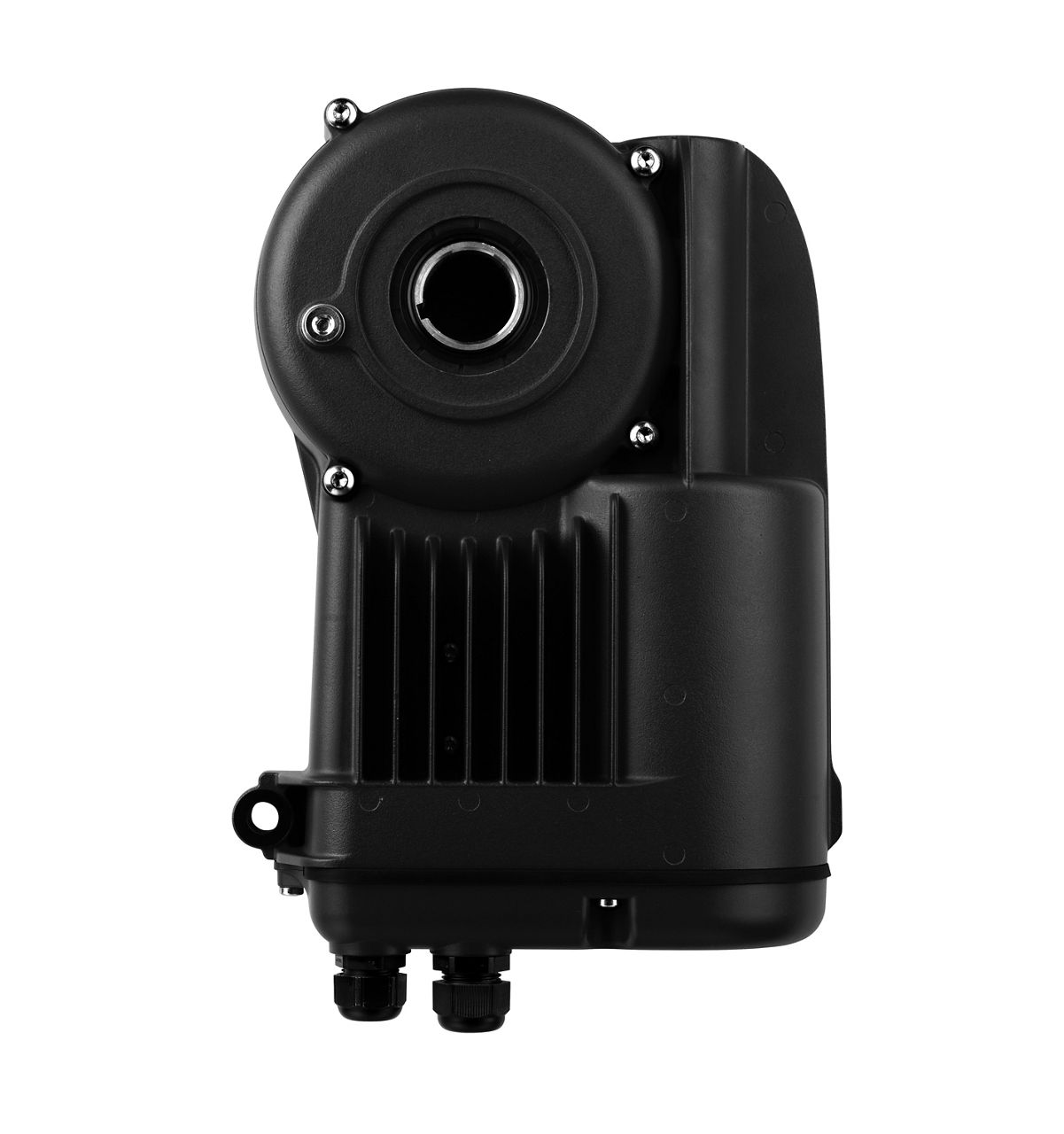

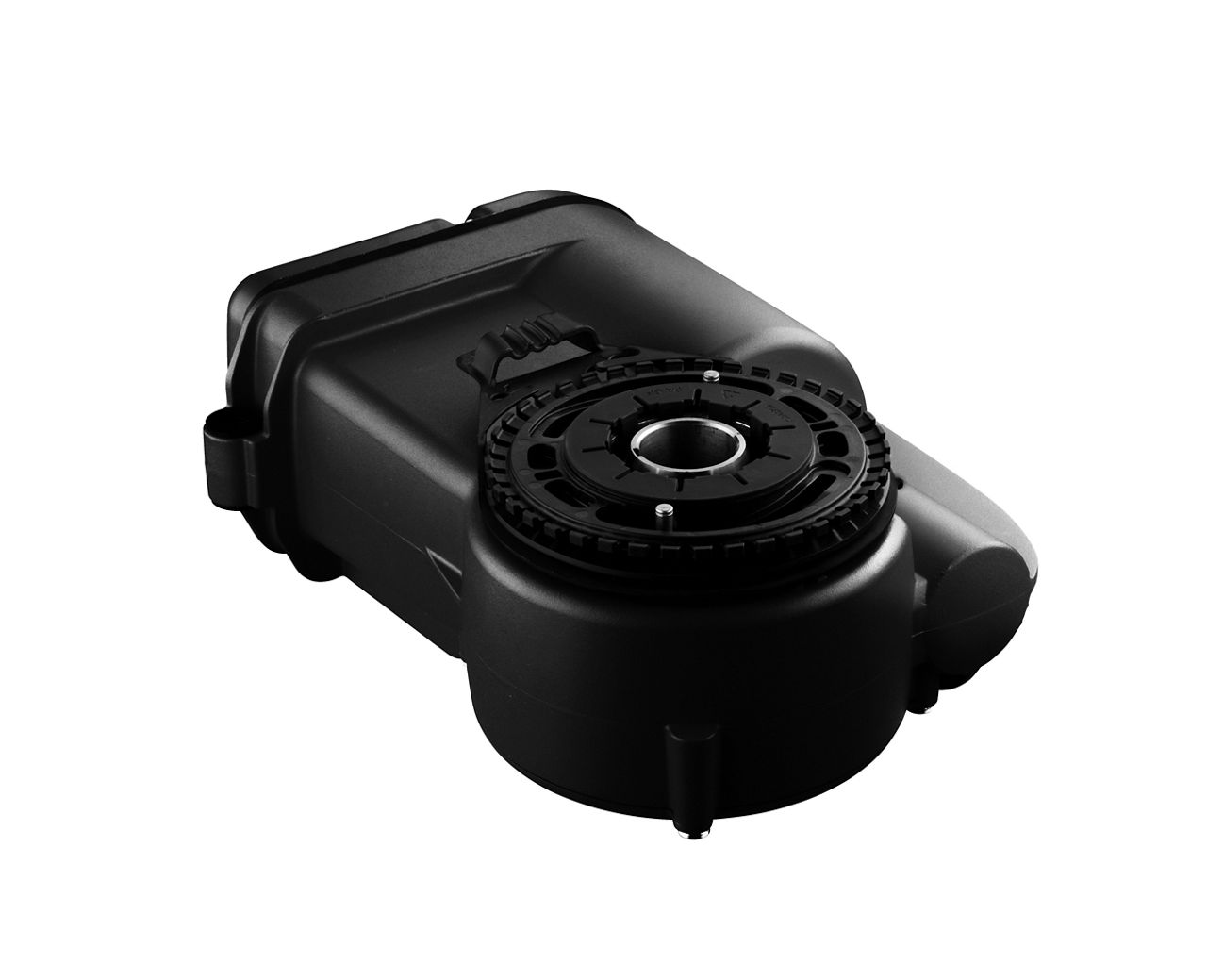

A fast, reliable motor
Every second saved is more time to do business. The robust motor works hard for you to secure optimised speed for a productive workflow.

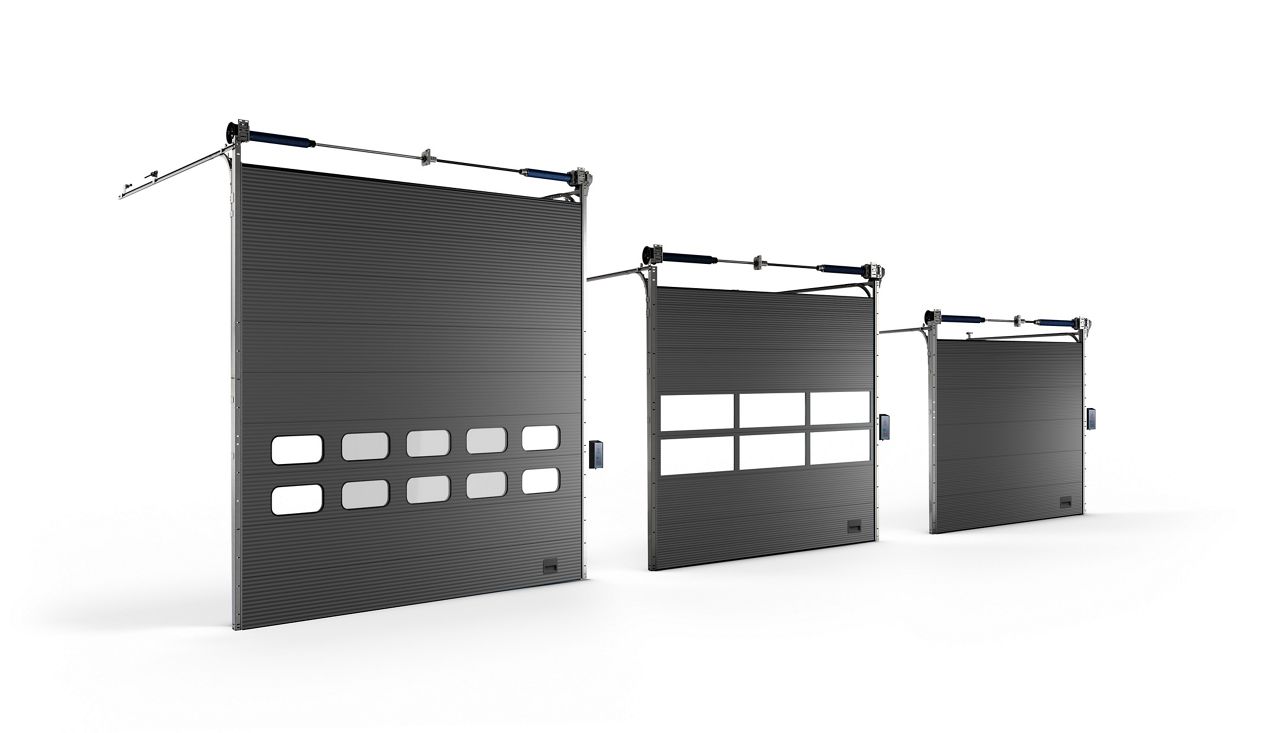

Configure to suit your needs
Whatever your line of business, we can customize our doors to meet your needs, with a wide range of sizes, colors, lift types, and window and pass door options.
Energy saving
Environment control
- Windows optional
- No pedestrian door possible
- Thermal transmittance coefficient, EN 12428: full panel door:
1.0 W/m2K - Watertightness, EN 12425:
Class 3 - Airtightness, EN 12426:
Class 3 - Acoustic insulation, EN 10140-2:
R - 25dB - Remains operational even under strong wind
- Wind load, EN 12424:
Class 3 - Made to measure
- Fully customizable with a large aesthetic choice
- Electrical operation
- Automated operation, access control and safety functions available
- Burglar proof
- Solid door structure protects your premises
- Safe for personnel and equipment
- Safety devices to block downward door movement
- Energy saving
- Fenestration reduces the need for artificial light
- Conform to EN13241-1
Name Value Max size: (W x H) 5000 x 5000 mm Panel thickness: 42 mm Panel material: Micro rilled Filling: CFC-free polyurethane, flame retardant DIN 4102-B2 Weight: 13 kg/m2 Color outside: 13 standard RAL colors Color inside: RAL 9002 Track types: Standard: SL Optional: HL, VL Windows: Optional: DARP, TARP, DAOP, ALRB, ALBS, Framed section Passdoor: Not possible in the Dynaco I 14S Electrical operation: Optional: Automated operation, Access control, Safety functions Opening speed 1.0 m/sec Usage: Inside & outside, heavy duty use, need for better temperature control, need to avoid door-collisions, need to reduce noise and dust Technology: Balancing by springs
